Angulated Multi Unit 1.4 CAD/CAM Set (17° / 30° / 45° / 52° / 60°)

$85.00

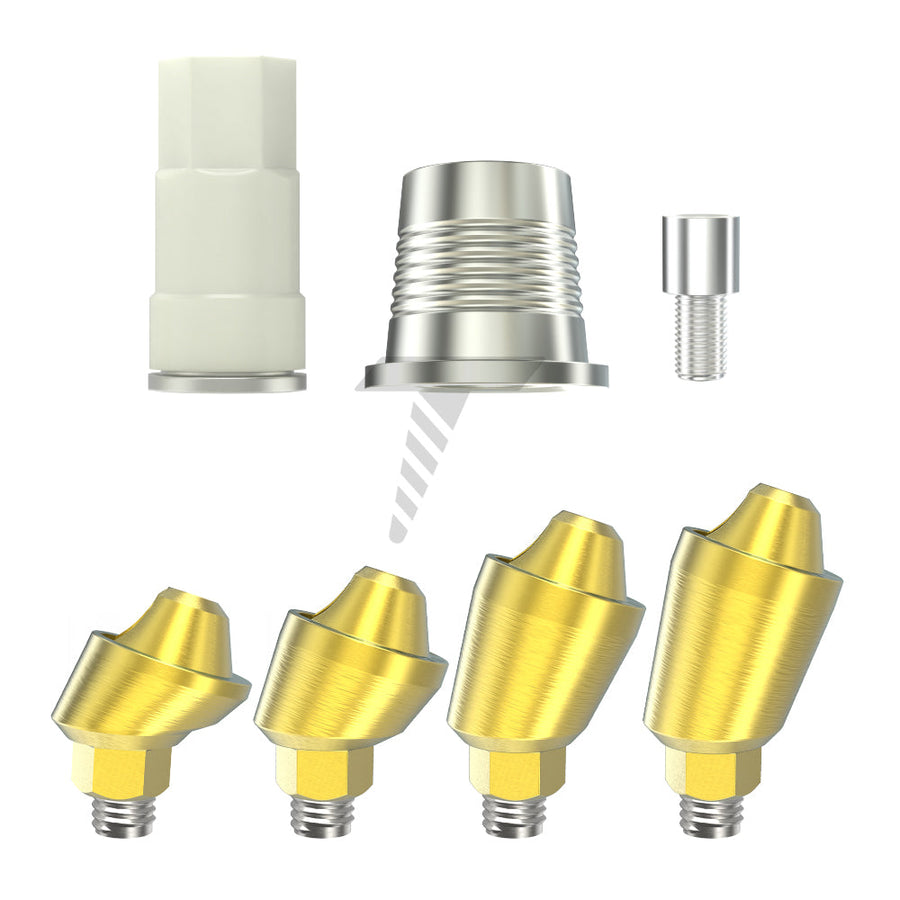

Package Includes - Angulated Multi Unit Abutment (17° / 30° / 45° / 52° / 60°) + 1 Titanium Screw + 1 CAD/CAM Titanium Base + 1 PEEK Scan Body

# Connection: Internal Hex 2.42mm

# Heights: 2.0mm, 3.0mm, 4.0mm, 5.0mm

# Screw Platform: 1.4mm

# Diameter: Ø4.9mm

# Angle: 17°, 30°, 45°, 52°, 60°

# Material: Titanium grade 5 (TI-6AL-4V ELI)

# Peek Scan Body Length: 10.0mm

# Country of Manufacture: Israel

# Fits with most of the leading implant brands compatible with the Internal Hex connection

Our complete prosthetic set for digital screw retained restorations on 1.4 multi unit platforms requiring correction of implant angulation. The set includes an Angulated Multi Unit 1.4 Abutment available in 5 degree options (17°, 30°, 45°, 52°, 60°), a matching Titanium Base, and a PEEK Scan Body.

Both the Angulated Multi Unit Abutment and the Ti Base are manufactured from Titanium Grade 5 (Ti 6Al 4V ELI), providing mechanical strength and precise component fit. The included PEEK Scan Body ensures accurate digital transfer to CAD software. Scan bodies are available in 7.0 mm, 10.0 mm, and 13.0 mm lengths. The set is supplied with a 10.0 mm scan body by default. If 7.0 mm or 13.0 mm is required, this must be specified at the time of order.

The set is compatible with the GDT digital workflow, and the GDT CAD CAM Library is available as a free download.
