Home/GDT Dental Implants/All in One Bundle - 50 Conical NP Implants, 50 Straight Abutments and Full Implantation Kit

NP0835Dental Implant● In stock

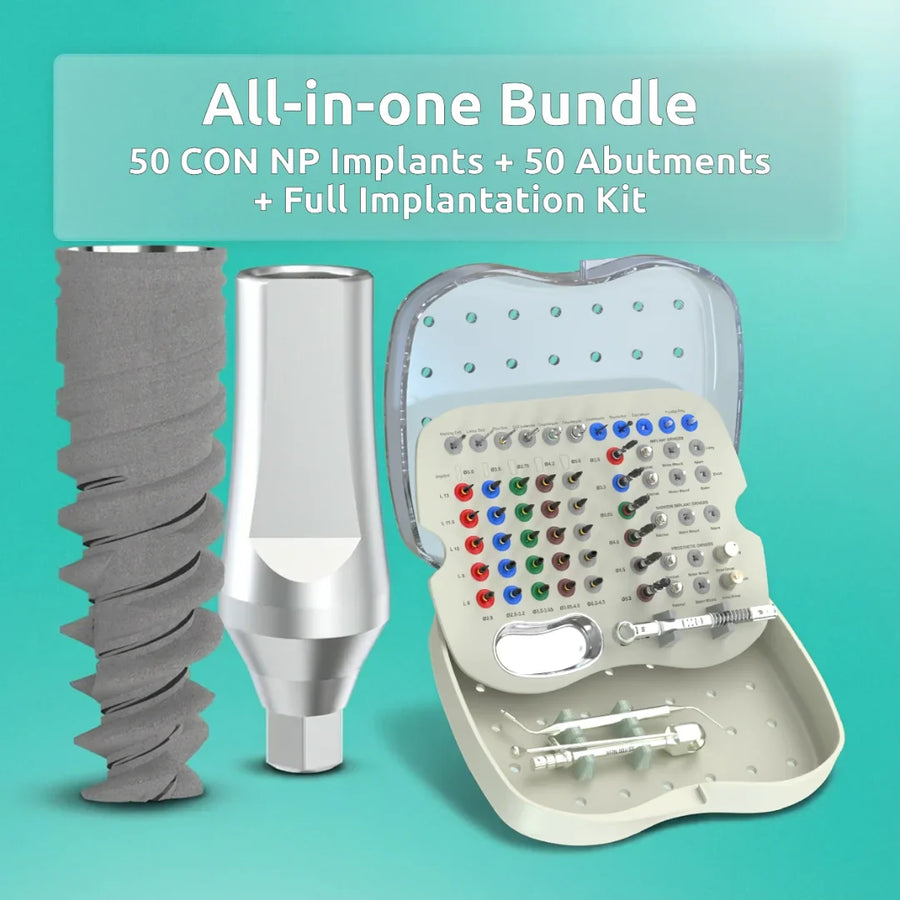

All in One Bundle - 50 Conical NP Implants, 50 Straight Abutments and Full Implantation Kit

NOTICE: Not sending sizes 24 hours from the moment of purchase may cause a shipment of random sizes!

Package Includes - 50 Conical NP Implants, 50 Straight Abutments and one DLC Conical Integral Stopper Drills Full Implantation Kit

# Connection: Conical Connection Hex 2.25mm

# Condition: Sterilized, Double Packaging

# Material: Titanium grade 5 (TI-6AL-4V ELI)
# Surface Treatment: SLA (sandblasted, large grit, acid etched) Surface

# Country of Manufacture: Israel

# Fits leading implant brands such as Nobel Active

This all-in-one bundle is built around the Conical NP implant system and is intended to support predictable placement, strong primary stability, and esthetic outcomes in narrow-platform cases. It combines a tapered conical implant design with compatible prosthetic options and a complete implantation kit for streamlined clinical workflow.

CON NP Implant

The CON NP Implant is designed with a narrow-platform conical connection and an SLA treated surface to support stable integration across a variety of bone conditions. Its tapered spiral body and interlocking conical connection are intended to create a tight seal, supporting soft tissue adaptation and esthetic stability.

The implant geometry is optimized for high primary stability, making it suitable for challenging scenarios such as softer bone quality and extraction sockets. A self-tapping, self-drilling thread profile supports efficient insertion and controlled load distribution. The round apex design helps reduce the risk of trauma near anatomical structures.

Implant diameter and length options are shown below.

Straight Abutment

The bundle includes straight abutments made from Titanium Grade 5, with multiple options available to match different restorative needs. Choose between with or without shoulder designs and select the required length for accurate prosthetic fit and case flexibility.

Abutment type and diameter options are shown below.

Full Implantation Kit

DLC Conical Integral Stopper Drills The implantation kit is designed for accurate, predictable, and controlled implant placement. It features DLC-coated conical integral stopper drills for excellent cutting performance, reduced heat generation, and smooth, low-vibration operation. The kit is organized according to a logical drilling protocol, with clearly labeled instruments for efficient workflow during procedures.

Kit Includes

1x Marking Drill - Ø1.9mm
1x Lance Drill - Ø1.5mm
1x Straight Drill Ø2.0mm - 16.0mm
1x Drill Extender
2x Countersink Drills - Ø3.75mm X Ø4.2mm, Ø5.0mm X Ø6.0mm
1x Lindemann Drill - Ø1.5mm
1x Round Bur Ø3.8mm - 30.0mm
2x Parallel Pins - 10.0mm, 16.0mm
25x DLC Conical Integral Stopper Drills - Ø1.9mmXØ2.7mm, Ø2.1mmXØ3.3mm, Ø2.8mmXØ3.7mm, Ø2.8mmXØ4.0mm, Ø2.8mmXØ4.5mm (Each Diameter Has 5 Lengths - 6.0mm, 8.0mm, 10.0mm, 11.5mm, 13.0mm)
6x DLC Straight Drills L16mm - Ø2.8mm, Ø3.2mm, Ø3.65mm, Ø4.0mm, Ø4.5mm, Ø5.2mm
2x Hex Drivers RP Ø2.65mm - 10.0mm, 15.0mm
2x Motor Mounts RP Ø2.65mm - 20.0mm, 28.0mm
1x Hex Driver NP Ø2.25mm - 15.0mm
1x Motor Mount NP Ø2.25mm - 28.0mm
2x Hex Drivers Ø1.25mm - 7.0mm, 15.0mm
2x Motor Mounts Ø1.25mm - 20.0mm, 28.0mm
2x Hand Hex Drivers Ø1.25mm - 7.0mm, 15.0mm
1x Surgical Torque Ratchet Wrench Ø6.35mm - 10-45Ncm
1x Removable Stainless Steel Tray
1x Surgical Torque Ratchet Wrench Ø6.35mm - 35-100Ncm
1x Depth Probe
