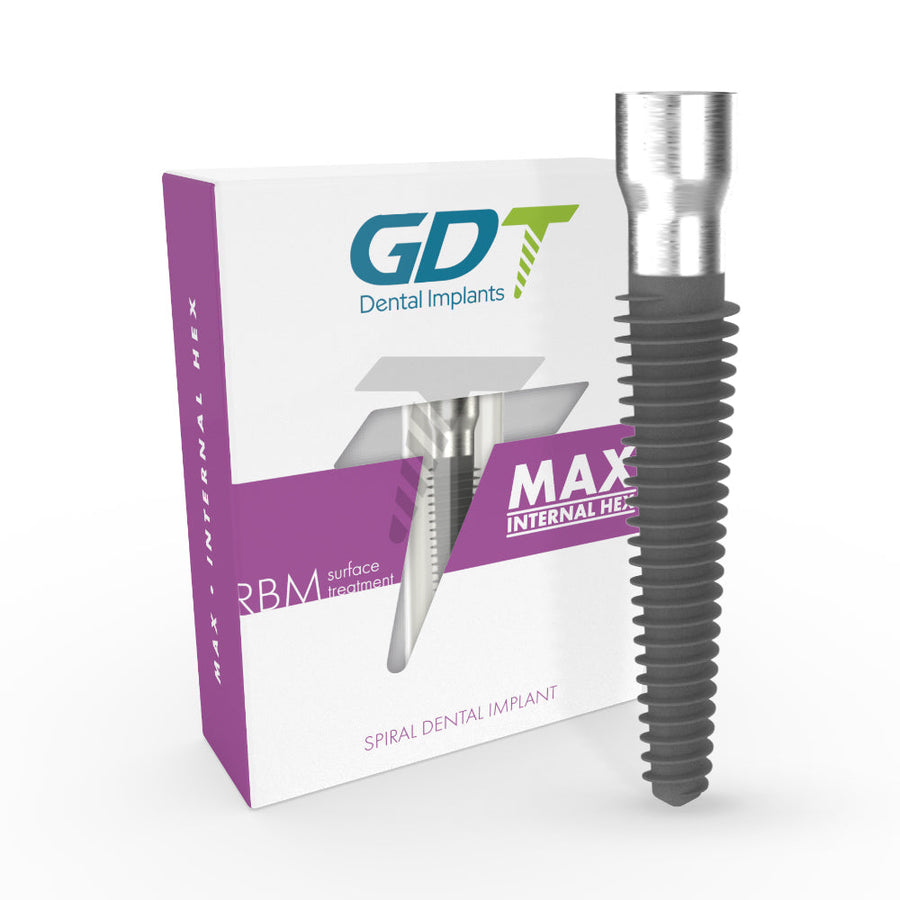

MAX - Basal/Cortical Spiral Implant, Internal Hex

# Connection: Internal Hex 2.42mm

# Implant Diameters: Ø4.2mm, Ø5.0mm, Ø6.0mm

# Implant Length: 8.0mm, 10.0mm, 11.5mm, 13.0mm, 16.0mm, 18.0mm, 20.0mm, 22.5mm, 25.0mm

# Condition: Sterilized, Double Packaging

# Material: Titanium grade 5 (TI-6AL-4V ELI)

# Surface Treatment: RBM - Resorbable Blast Media, Calcium Phosphate.

# Country of Manufacture: Israel.

GDT MAX Basal/Cortical Implant delivers excellent stability for immediate loading in narrow ridges, combination ridge anatomy, and extraction sites.

Its sharp and deep threads provide exceptional primary implant stability, and its smooth neck prevents bacterial adhesion.

The implant's threads are placed orthogonally to the occlusion load, ensuring remarkable stability in the cortical bone.

For optimal results in Max implant placement, we advise utilizing our Surgical Kit designed specifically for Basal/Cortical Implants.

GDT implants are made of Titanium alloy Ti-6Al-4V ELI. This material combines properties such as low specific weight, high strength to weight ratio, very high corrosion resistance, and excellent general biocompatibility.

Ti-6Al-4V ELI is very similar to Ti-6Al-4V, except that Ti-6Al-4V ELI contains reduced levels of oxygen, nitrogen, carbon, and iron. ELI is short for “Extra Low Interstitials”, and these lower interstitials provide improved ductility and better fracture toughness for the material.

Ti-6Al-4V ELI has proven to be highly successful in the fabrication of dental implants

Surface Treatment:
RBM surface is rough and hydrophilic.
This surface treatment is designed to roughen the implant surface without leaving the residual embedded blast particles or debris in the treated substrate.
To gain the desired roughening the implant is blasted with suitable hardened particles of Hydroxyapatite (beta-tricalcium Phosphate, Alpha Tcp, TTcp, and Calcium Phosphate (CPP) and then subsequently dissolved from the surface with a defined passivation treatment.
Surface roughness between Ra 1.2 - 1.5 is consistently achieved.
The result is a rougher implant surface than traditional acid etches treatment providing a greater surface area for osseointegration, improved retention characteristics, increased biological fixation, and maximizing implant-to-bone contact.
The shape of the implant is made for simple and secure work and improving the osseointegration level.
The RBM surface treatment is made to improve the healing process and tissue growth around the implant, with no worries of abruption or disintegration.
