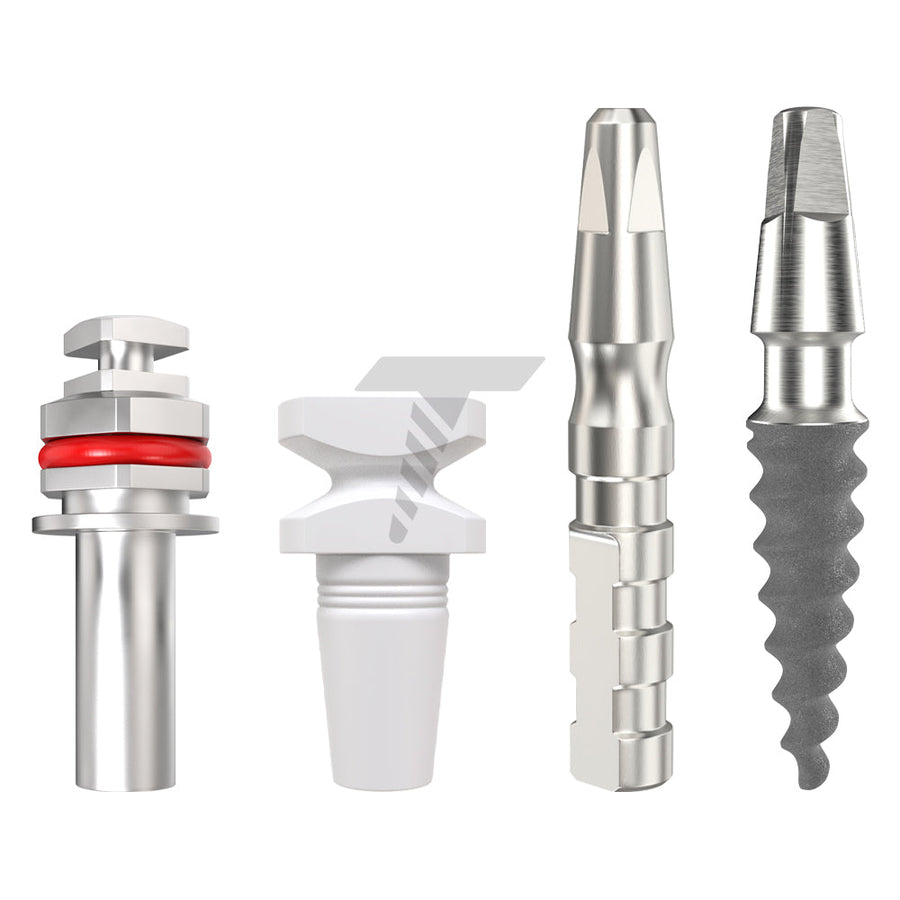

OPI - One Piece Implant Set

One Piece implant is a single unit containing a body comprising an implant and a straight structure.

The implant is used for immediate loading because of its uniform structure, this implant is coated with anti-bacterial anodized silver-colored. The surface of the implant is treated the same way in which the treatment is carried out at all our implant series.

GDT implants are made of Titanium alloy Ti-6Al-4V ELI, a material that combines properties such as low specific weight, high strength to weight ratio, very high corrosion resistance, and excellent general biocompatibility.

Ti-6Al-4V ELI is very similar to Ti-6Al-4V, except that Ti-6Al-4V ELI contains reduced levels of oxygen, nitrogen, carbon, and iron. ELI is short for “Extra Low Interstitials”, and these lower interstitials provide improved ductility and better fracture toughness for the material.

Ti-6Al-4V ELI has proven to be highly successful in the fabrication of dental implants

SLA Surface Treatment Technology:

SLA is a type of surface treatment that creates surface roughness intending to enhance osseointegration through greater bone-to-implant contact (BIC).

SLA surface treatment technology is based on a large-grit sandblasting technique that generates a macro-roughness on the titanium surface, This technique is followed by acid-etching that superposes a micro-roughness, This topography offers an excellent structure for cell attachment.

SLA surface treatment increases the rate at which osseointegration occurs by using a combination of grit and acid etching to give the surface increased roughness on multiple levels. This allows osteoblasts to proliferate and adhere to the implant surface. Through osseointegration, SLA helps provide increased stability of the implant which will ultimately lengthen its longevity.

Impression Coping Transfer

GDT Impression transfer for one-piece implants gives you the ability to precisely record an implant position in each implant-supported prosthetics.

They used closed tray impressions, pick-up impression techniques.

The cap stays in the impression coping to prevent further movement to provide you better accuracy, stability, and expected results.

This method gives you an exact place orientation without extra working time.

This transfer makes your work easier and more accurate in challenging cases when the position of an implant inflicts with an impression coping procedure.

Analog

GDT One-Piece Implant Analog is a simple tool for laboratories working on one-piece implants.

This analog ideally replicates the shape and size of the one-piece implant and exact build-in abutment positioning.

GDT One Piece Implant Analog matches the exact morphology of a GDT OPI® One Piece Implant

Hex Driver

Used for installation of one-piece implants.
